Cerium oxide
CAS No.: 1306-38-3
EINECS No.:215-150-4
Molecular Weight: 172.12
HS Code: 2846101000
Molecular Formula:: CeO2
Package: 25kg/50kg per drum or according to clients request.
Tel:+86-15550481165
Email: sales@sintopchem.com
Introduction:
Cerium Oxide Introduction:

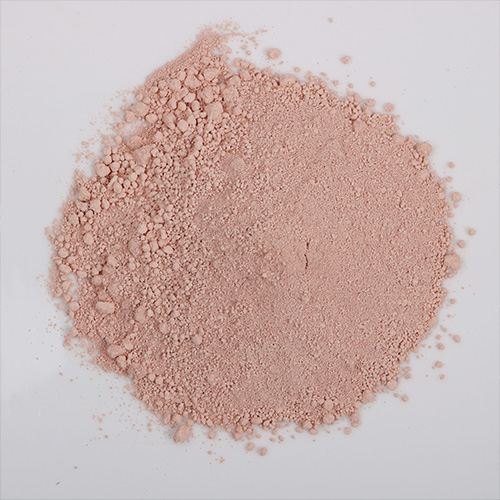

Cerium oxide is a kind of inorganic substance, chemical formula for CeO2, light yellow or yellowish brown powder. Density 7.13g/cm3, melting point 2397℃, insoluble in water and alkali, slightly soluble in acid. Under the temperature of 2000℃ and the pressure of 15MPa, cerium oxide can be reduced by hydrogen to obtain cerium trioxide. When the temperature is free between 2000℃ and the pressure is free at 5MPa, cerium oxide is yellowish with red and pink. Its performance is to do polishing material, catalyst, catalyst carrier (auxiliaries), uv absorbent, fuel cell electrolyte, automobile exhaust absorbent, electronic ceramics, etc.
Cerium oxide Usage :
1.Oxidant. Catalysts for organic reactions. Iron and steel are analyzed as rare earth metal standard samples. REDOX titration analysis. Decolorizing glass. Glass enamel sunscreen. Heat resistant alloy.
2.It can be used as additive in glass industry, as grinding material for plate glass, and can also be used in cosmetics to resist ultraviolet rays. Has been extended to glasses glass, optical lens, picture tube grinding, decolorization, clarification, the absorption of ultraviolet light of glass and electronic line.
Cerium oxide polishing powder E series:

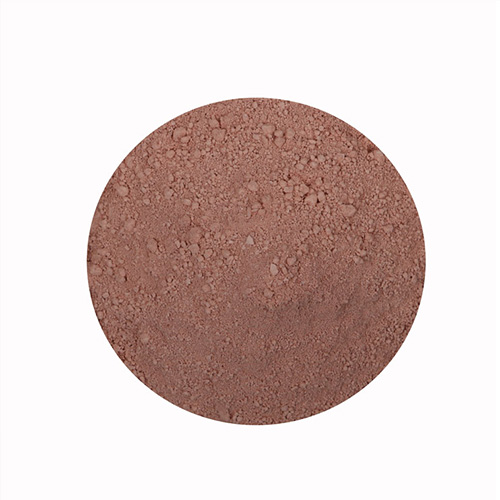

E series is a red cerium oxide grinding powder used for cold processing of optical lenses, glasses, optoelectronics and other industries. It can be used for polishing lenses, prisms, glass substrates of liquid crystal plates, optical discs and other parts with different materials and precision requirements. With good dispersity, non-adhesion, superior quality, stable quality, complete varieties, a wide range of use, has been widely recognized by many users.
|
Polishing powder model |
TREO（%） |
Main technical parameters |
F（%) |
D50(um) |
Application |
|
E05 |
92 |
80 |
2-3 |
0.4-0.6 |
Suitable for fine polishing of blue glass, quartz, glass-ceramics,BK7,FK61 and fused quartz. |
|
E08 |
92 |
80 |
2-3 |
0.6-0.9 |
Suitable for processing HD, all kinds of optical parts end polishing. |
|
E10 |
92 |
80 |
2-3 |
1.1-1.4 |
Suitable for the first polishing of TFT,HD and various soft glass lenses, the effect is equivalent to E303,TE-98. |
|
E20 |
90 |
75-80 |
3-5 |
1.8-2.1 |
Belongs to the general type polishing powder, has the polishing speed is fast, the application range is wide, is suitable for processing medium precision parts, is also suitable for flat surface, spherical and other hard materials polishing. |
|
E30 |
90 |
75-80 |
3-5 |
2.8-3.3 |
It is a kind of polishing powder with high cerium content. It is a cost-effective product designed and developed for customers. Suitable for polishing mobile phone cover plate and quartz glass. |
|
E40 |
90 |
75 |
3-5 |
3.8-4.3 |
It is suitable for polishing hard glass, especially glass with attrition between 40 and 60. |
Recommended concentration of polishing powder (solution): About 50 to 120 g/l (concentration should not be too high).
Polishing temperature:20 ~ 30 ℃.
Material of polishing pad:Suiting for various polishing materials ,such as polyurethane polished section, black polishing pad, asphalt, blankets, synthetic leather ,etc..
Packing:
Polishing powder: 20kg /barrel.
Cerium oxide polishing powder A series:
Applicable to cold working of lenses in optics, glasses, and photonics industries, the white cerium oxide abrasives in series A can be polished for lenses, prisms, glass substrate of liquid crystal, disk and other components in different materials and precision. Featuring good dispersion, no adhesion, superior quality, stable quality, variety and wide range of application, the product has been widely accepted by mass of users.
| Model of polishing powder | TREO（%） | Main technical parameters | F（%) | D50(um) | Application |
| A05 | 92 | 80 | 2-3 | 0.4-0.6 | Suitable for fine polishing of blue glass, quartz, glass-ceramics,BK7,FK61 and fused quartz. |
| A10 | 92 | 80 | 2-3 | 0.6-0.9 | Suitable for processing HD, all kinds of optical parts end polishing. |
| A20 | 92 | 80 | 2-3 | 1.1-1.4 | Suitable for the first polishing of TFT,HD and various soft glass lenses, the effect is equivalent to E303,TE-98. |
| A30 | 90 | 75-80 | 3-5 | 1.8-2.1 | Belongs to the general type polishing powder, has the polishing speed is fast, the application range is wide, is suitable for processing medium precision parts, is also suitable for flat surface, spherical and other hard materials polishing. |
Recommended concentration of polishing powder (solution): About 50 to 120 g/l (concentration should not be too high).
Polishing temperature:20 ~ 30 ℃.
Material of polishing pad: Suiting for various polishing materials such as polyurethane polished section, black polishing pad, asphalt, blankets, synthetic leather, etc..
Packing:
Polishing powder: 20kg /barrel.
Rare earth Cerium oxide Specification:
| CeO2/TREO (% min.) | 99.999 | 99.99 | 99.9 | 99 |
| TREO (% min.) | 99 | 99 | 99 | 99 |
| Loss on ignition (% max.) | 1 | 1 | 1 | 1 |
| Rare Earth Impurities | ppm max. | ppm max. | % max. | % max. |
| La2O3/TREO | 2 | 50 | 0.1 | 0.5 |
| Pr6O11/TREO | 2 | 50 | 0.1 | 0.5 |
| Nd2O3/TREO | 2 | 20 | 0.05 | 0.2 |
| Sm2O3/TREO | 2 | 10 | 0.01 | 0.05 |
| Y2O3/TREO | 2 | 10 | 0.01 | 0.05 |
| Non-Rare Earth Impurities | ppm max. | ppm max. | % max. | % max. |
| Fe2O3 | 10 | 20 | 0.02 | 0.03 |
| SiO2 | 50 | 100 | 0.03 | 0.05 |
| CaO | 30 | 100 | 0.05 | 0.05 |
| PbO | 5 | 10 | ||
| Al2O3 | 10 | |||
| NiO | 5 | |||
| CuO | 5 |
